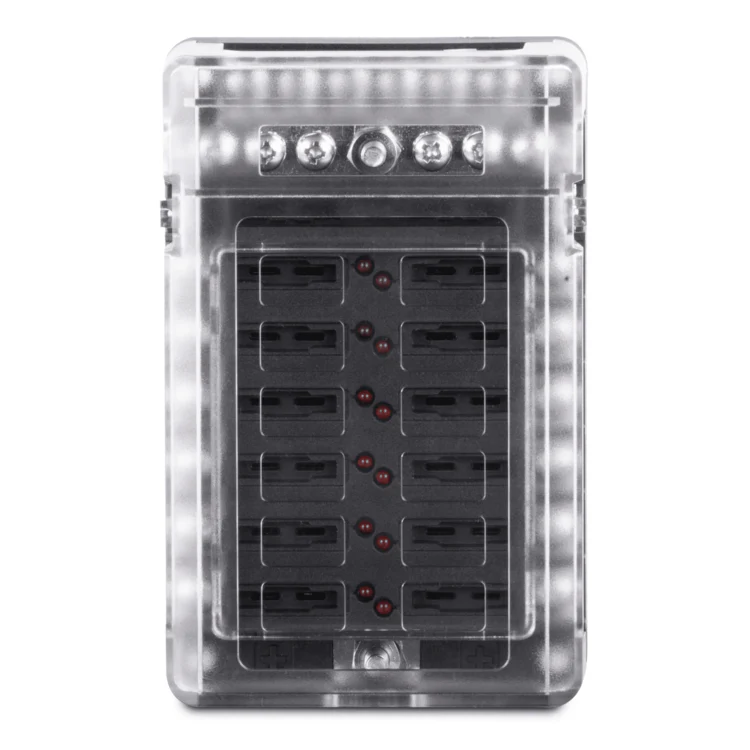

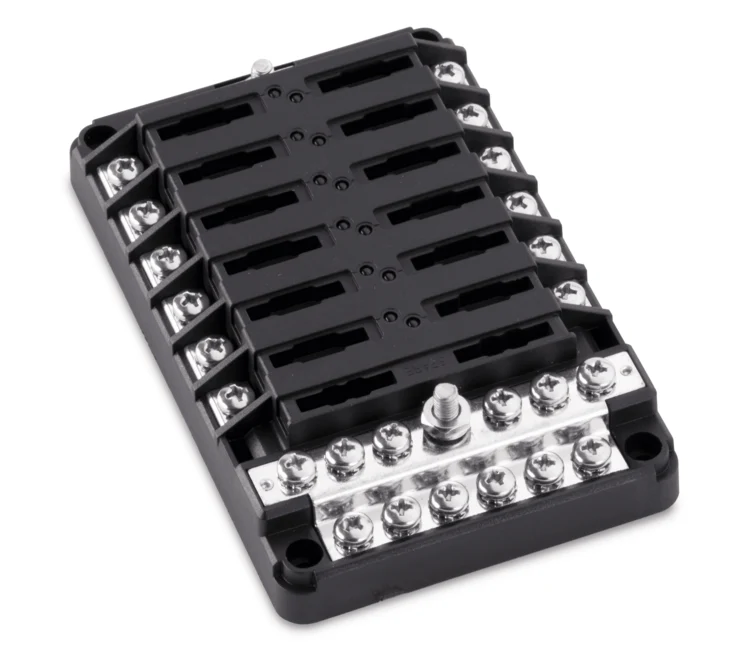

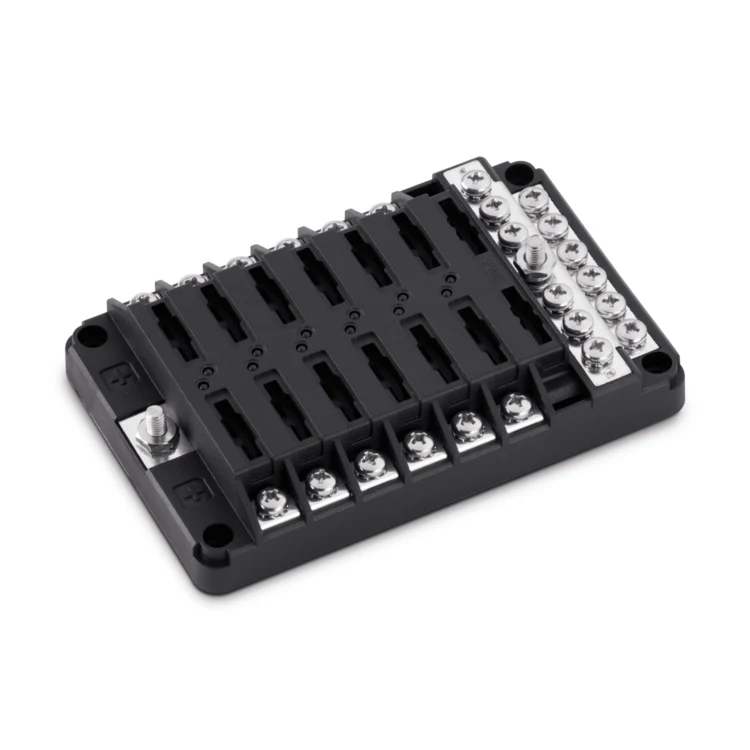

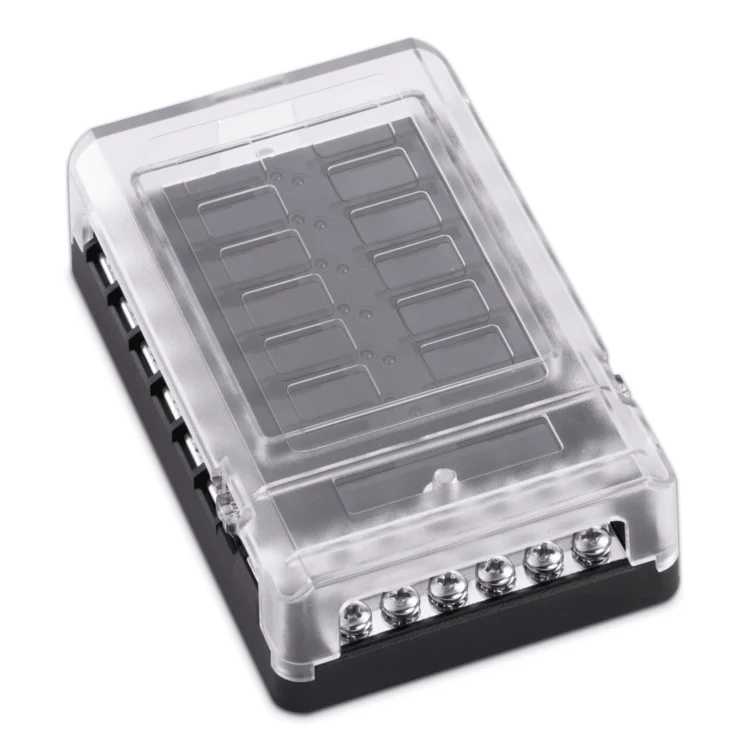

408 Series Fuse Block | FS40840
12 gang with bus bar and cover. ABYC/USCG compliant. Transparent cover with recessed area for labels (60pc. decal set included). Accepts ATP/ATC/ATO blade style fuses up to 30A. LED indication of blown fuses. Storage for 2 spare fuses.
- Overall size: 3 3/8"W x 5 1/4"L x 1 5/8"H
- Max Voltage Rating: 32VDC
- Rating per Circuit: 30A
- Max Cumulative Rating per block: 100A
- Terminal Stud Size: M5
- Screw Size: M4
- Accepts ATP/ATC/ATO blade style fuses up to 30A
12 gang with bus bar and cover. ABYC/USCG compliant. Transparent cover with recessed area for labels (60pc. decal set included). Accepts ATP/ATC/ATO blade style fuses up to 30A. LED indication of blown fuses. Storage for 2 spare fuses.
- Overall size: 3 3/8"W x 5 1/4"L x 1 5/8"H
- Max Voltage Rating: 32VDC
- Rating per Circuit: 30A
- Max Cumulative Rating per block: 100A
- Terminal Stud Size: M5
- Screw Size: M4
- Accepts ATP/ATC/ATO blade style fuses up to 30A
$64.39
408 Series Fuse Block | FS40840—
$64.39
Description
12 gang with bus bar and cover. ABYC/USCG compliant. Transparent cover with recessed area for labels (60pc. decal set included). Accepts ATP/ATC/ATO blade style fuses up to 30A. LED indication of blown fuses. Storage for 2 spare fuses.
- Overall size: 3 3/8"W x 5 1/4"L x 1 5/8"H
- Max Voltage Rating: 32VDC
- Rating per Circuit: 30A
- Max Cumulative Rating per block: 100A
- Terminal Stud Size: M5
- Screw Size: M4
- Accepts ATP/ATC/ATO blade style fuses up to 30A
